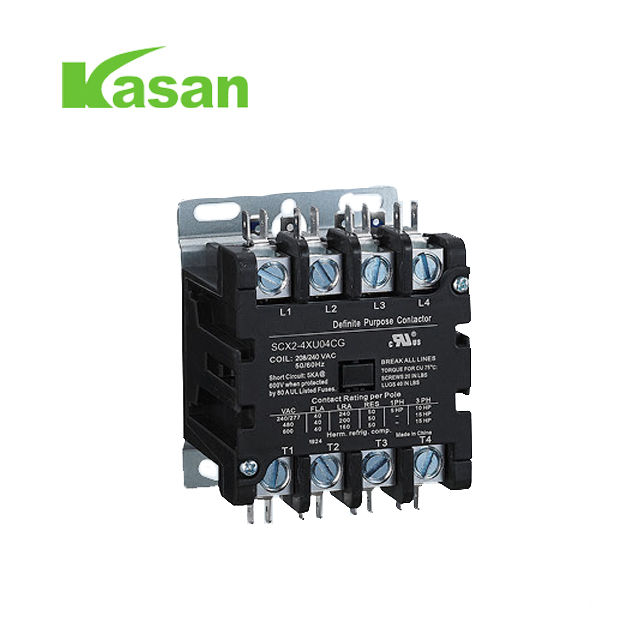

UL verified 4 Pole 40 AMP DP Contactor 120 Volt AC Coil Contactor

Application Range

SCX2 series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating. lighting andmany other installations where a low cost, high performance contactor is needed. These devices offer flexiblity and are designed to meet or exceed

electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.

Electrical Contact Ratings:20A-90A

electrical coil ratings:24-60oV

life rating,100,000&250,000 cycle options.

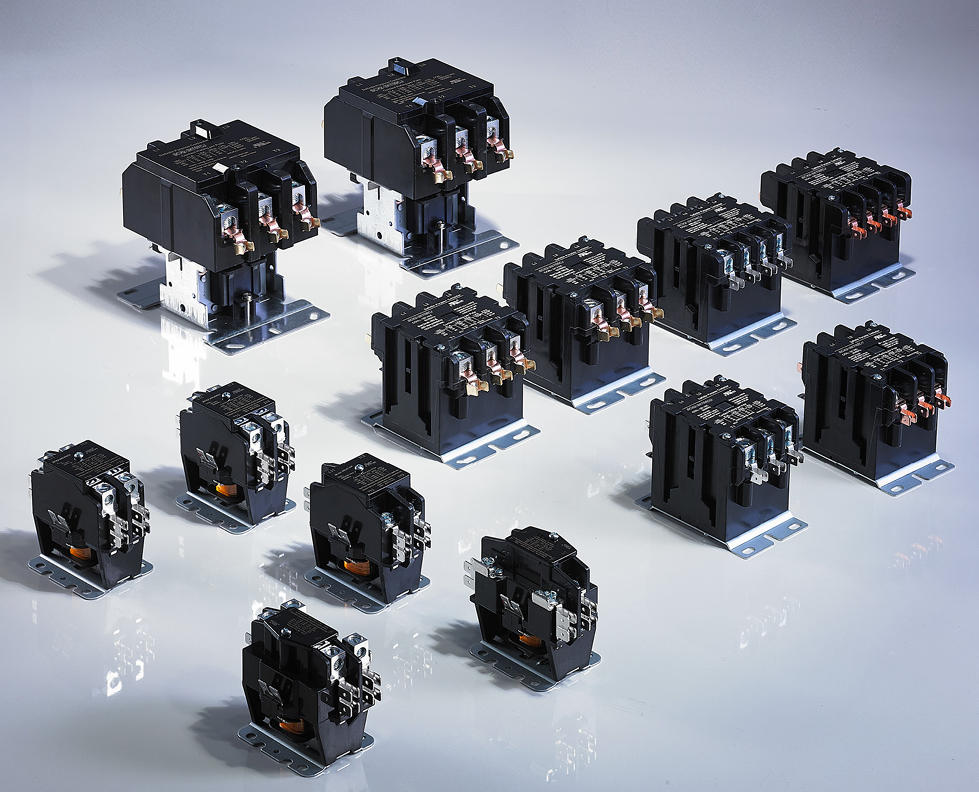

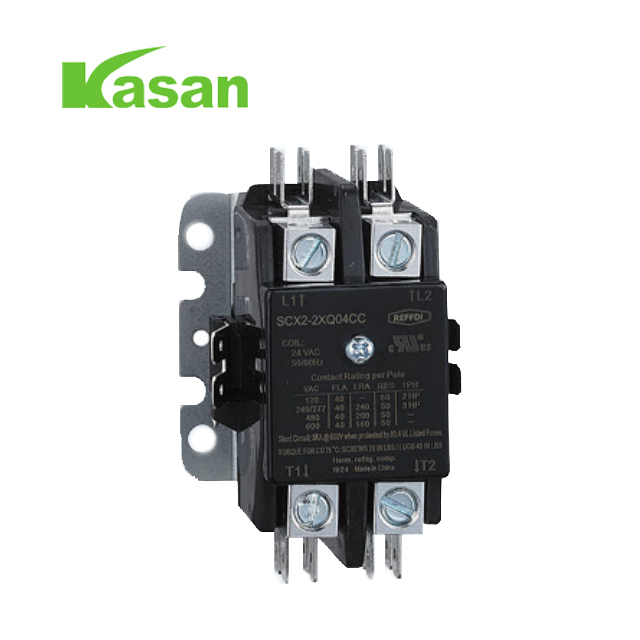

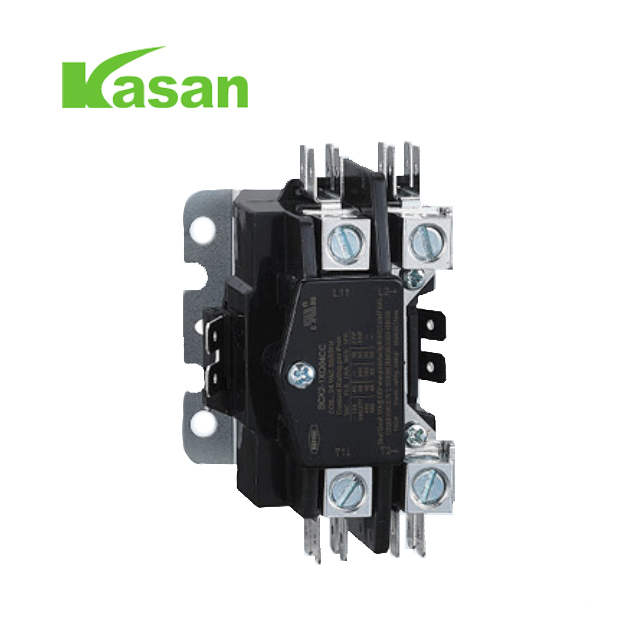

Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw,

box or pressure plate connections NEMA mounting base.

NO/NC end switch kits.

Terinations 10-32 cre 20, 25& 30 FLA Models

Box Lug-40, 50, 60,75 & 90 FLA Models

Temperature Range:- 40° F to + 150° F/- 40° Cto + 65°C

Remark:

1.The tolerance of wiring connector without specified dimensions shall be in accordance with 0.2mm.2.Main circuit screw locking torque for rated current 20-40FLA 182 Poles products: SCREWS 22 IN-LBS/LUGS 40 IN-LBSMain circuit screw locking torque for rated current 20-40FLA 384 Poles and50-60FLA products: 50 IN-LBSMain circuit screw locking torque for rated current 75-90FLA products: 50 IN-LBS

Auxiliary module screw locking torque: 10 IN-LBSCoil screw locking torque for rated current 20-90FLA products: 10 IN-LBS3.The quick connect socket terminal must comply with IEC60760 standard and ensure reliableconnection between terminal and insert,if insert wiring is used.
