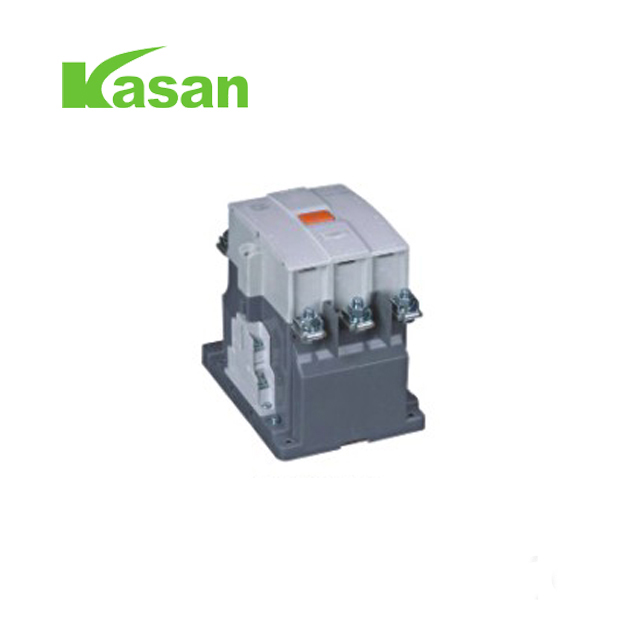

Magnetic Contactor GMC-40 AC Contactor

Kasan is Magnetic Contactor GMC-40 AC Contactor manufacturers and suppliers in China who can wholesale Magnetic Contactor GMC-40 Magnetic Types Of Contactor AC Contactor, we can provide professional service and better price for you.

Send Inquiry

Product Description

Magnetic Contactor GMC-40 AC Contactor Product Application

GMC series AC contactor is suitable for using in circuits up to the rated voltage 690V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, delay timer & machine-interlocking device etc, it becomes the delay contactor,mechanical interlocking contactor, star-delta starter. With the thermal overload relay, it is combined into the electromagnetic starter.

The contactor is produced according to IEC60947-4.

Magnetic Contactor GMC-40 Magnetic Types Of Contactor AC Contactor Product Feature

3 pairs of main contacts

Mechanical interlock

Design of anti-electric shock cover

Fixed by guide rail or screw

The accessory can be mounted on the top or at side

Be connected with the thermal overload relay directly

Magnetic Contactor GMC-40 Magnetic Types Of Contactor AC Contactor Product Details

Brand	HVACSTAR		type	GMC-40
Rated current	40A		Rated voltage	220V
Poles	3		Product name	AC contactor
Coil voltage	220/110/380		size	68mm
AC3(IEC60947)	220-240V	11KW 40A	AC1 Ith	60A
	380-440V	18.5KW 40A
	500-550V	22KW 32A
	690V	22KW 23A
Main contact	Screw(M4)crimping terminal		Auxiliary contact/ coil	1NO+1NC
Installation	Fixed by 35mm guiderail or screw(M4)		Connection	screw(M3.5)crimping terminal
