ID 2P Residual Current Circuit Breaker

ID 2P Residual Current Circuit Breaker Application

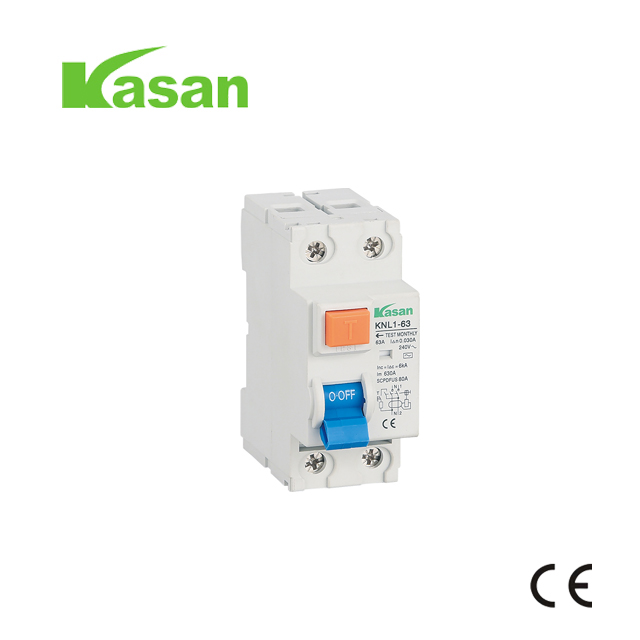

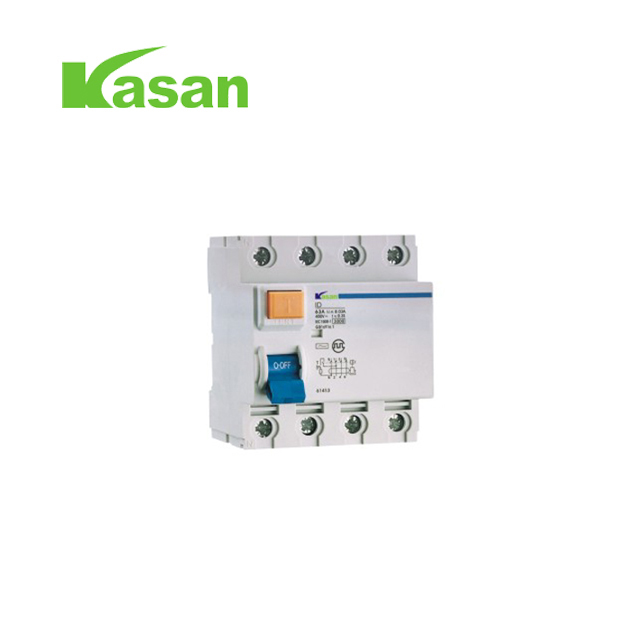

ID Residual Current Circuit Breaker 2P 4P 30mA 300mA Merlin Gerin Type RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the faultcircuit immediately on the occasion of shock hazard or earth leakage of trunk. Thus, it is suitableto avoid the shock hazard and fire caused by earth leakage.The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.

Main Technical Data

1.  Rated current: 25A,40A,63A.

2. Rated residual operating current: 0.03A, 0.1A, 0.3A.

3. According to behaviour in presence of d.c. Components: Type A, Type AC.

4. No. of  pole: 2p, 4p.

5. Rated residual current operated making and breaking capacity Im:500A(In=25A,40A); 630A(In=63A).

6. Inc: 6000A;

7. Ic: 6000A; 8. Rated residual non-operated current: Ino: 0.5In

ID Residual Current Circuit Breaker 2P 4P 30mA 300mA Merlin Gerin Type RCCB Feature

1.  Without auxiliary power supply, the product is designed with strong immunity and extending protection range against residual current.

2.  With higher rated ultimate short circuit, up to 6KA.

3.  Enclosure and functional parts made of imported plastics with flame-retardant, heat-resistant, and impulse-proof properties.

4.  High reliable operation thanks to special design terminals.Even under the pollution environment, the working reliability of the product will never be changed.

5.  Convenient mounting. More flexible and reliable operation with a handle.

ID Residual Current Circuit Breaker 2P 4P 30mA 300mA Merlin Gerin Type RCCB Specification
