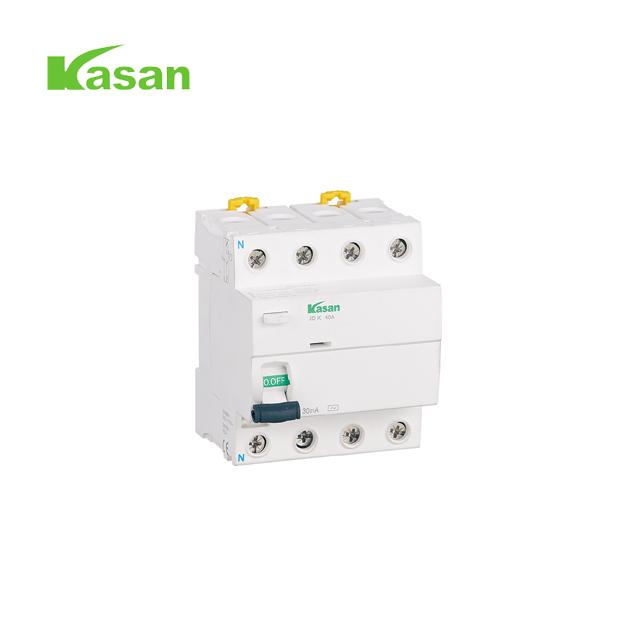

ilDK Residual Current Circuit Breaker RCCB
  • ilDK Residual Current Circuit Breaker RCCBilDK Residual Current Circuit Breaker RCCB
  • ilDK Residual Current Circuit Breaker RCCBilDK Residual Current Circuit Breaker RCCB

ilDK Residual Current Circuit Breaker RCCB

Welcome to wholesale or customized ilDK Residual Current Circuit Breaker RCCB from our factory at any time. We will provide you with factory discount prices for our products. Kasan is ilDK Residual Current Circuit Breaker RCCB manufacturers and suppliers in China.

Send Inquiry

Product Description

ilDK Residual Current Circuit Breaker RCCB Features

Achieve full coordination with Acti9 and Multi9 MCBs with DIN rail RCCB you can rely on. Providing better continuity of service as well as offering a complete environmentally friendly option, the DIN rail RCCB will also give you additional protection against any direct contact.

Complete with VisiSafe, which helps to ensure the ultimate in safety for both operation and maintenance work

Class-2 insulation: ensures continuous protection for both operators and unqualified personnel

Complete with VisiTrip: detects faulty outgoers quickly and reduces intervention time

Fully immune earth leakage protection: provides better continuity of service, especially with the new SI type (Super immune) which has been designed with polluted environments and networks in mind

The optional electrical auxiliaries and mounting accessories are consistent with those offered on Acti 9 iC60 miniature circuit breakers (MCBs)

Nominal current: 1 to 100 A

SI (Super immune), AC, A

30 mA sensitivity: provides additional protection against direct contact (in accordance with IEC 60364)

100 mA, 300 mA, 500 mA sensitivities: provide additional protection against fire and indirect contact (in accordance with IEC 60364)

Selective version: ensures correct discrimination between different residual current circuit breakers as well as the tripping of the device closest to the fault

Coordination with Acti 9 and Multi 9 MCBs

Fully compliant with standard IEC EN 61008-1

Certified by national official authorities

Ideally suited to isolation in full accordance with industrial standard IEC/EN 60947-2

Operating voltage: up to 400 V AC

Insulation voltage: 500 V AC

Optional auxiliaries available: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping.

ilDK Residual Current Circuit Breaker RCCB Benefits

Complete with VisiTrip and VisiSafe, the DIN rail RCCB provide greater continuity of service as well as enhanced protection to both industrial and commercial buildings.


  • Greater continuity of service with VisiTrip
  • Greater electrical immunity with SI type (Super immune)
  • Easy-to-understand part numbers make choosing options simple and straightforward
  • Easy to install with quick, ergonomic and secure IP20B terminal shutters
  • Fully robust connections which provide twice the standard tightening torque
  • Environmentally friendly: made from 100% recyclable and recoverable materials.


ilDK Residual Current Circuit Breaker RCCB Applications


  • Designed for industrial and commercial buildings
  • Prevent electrocution (in accordance with installation standard IEC 60364 and national standards)
  • Reduce fire hazards by cutting down current leakage into building electrical installations.


Model

iID

Rated Current (A)

16A 25A 40A 63A 80A 100A 125A

Rated Voltage (V)

230/400V

Earth-leakage sensitivity

100mA, 10mA, 300mA, 30mA, 500mA

Poles

2P, 4P

Breaking Capacity

6kA

Frequency

50/60Hz

Warranty

12-24 months
