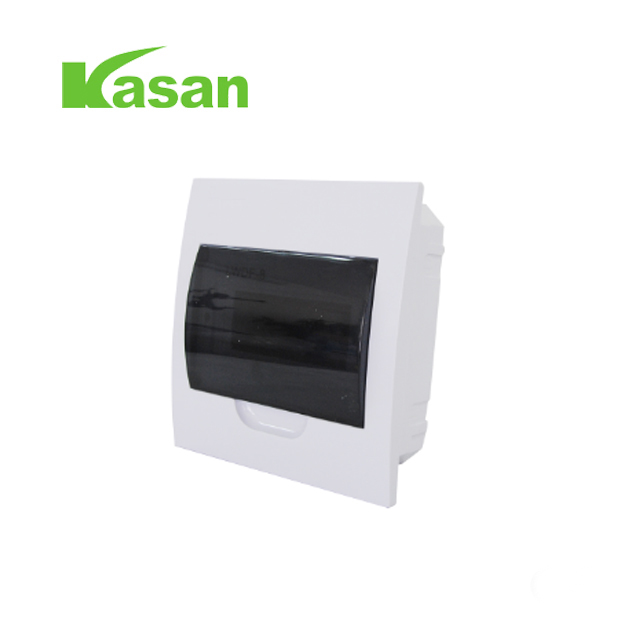

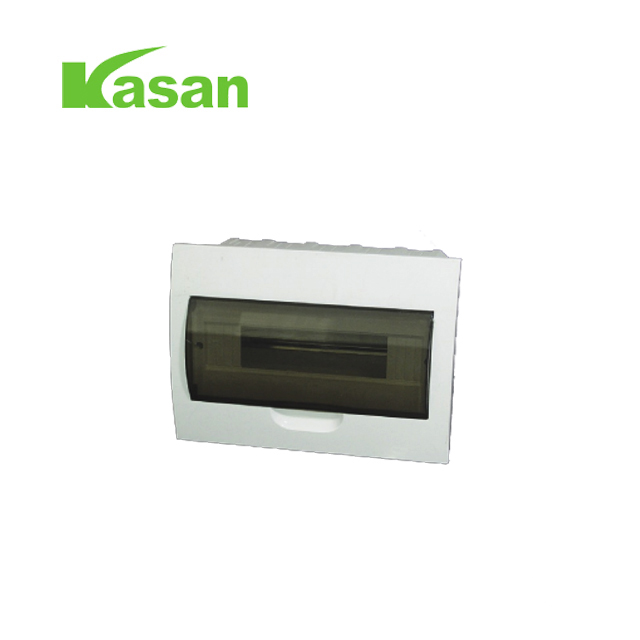

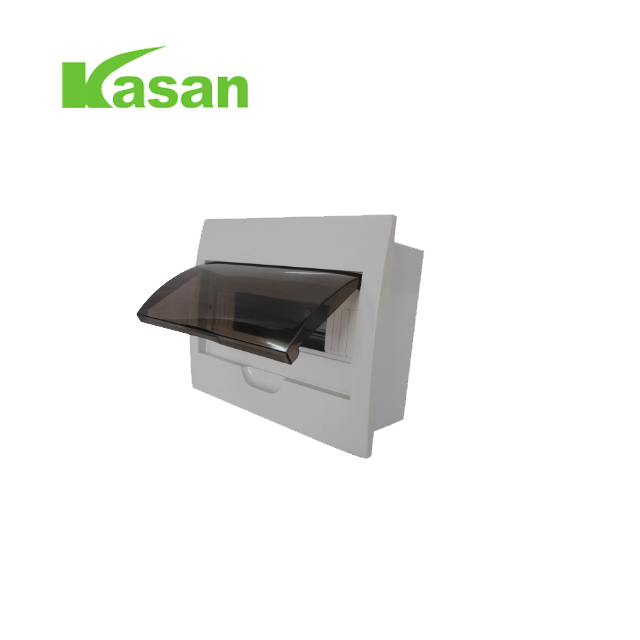

Flush Type Plastic Distribution Box

Flush Type Plastic Distribution Box adopts ABS flame-proof (UL temperature rating: V0) material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on. And confirm to standard BS EN60439-3, JB/T7121-93,and it is designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

Body material : ABS

Transparent door : PC

Earth / Natural bars : Brass

Material characteristics : Impact , heat , low temperature and chemical resistance ,excellent electrical performance and surface gloss , etc .

Certificates : CE , ROHS

Protection grade : IP50

Flush Type Plastic Waterproof Distribution Box for Mcb Mini Circuit Breaker Application

Suitable for indoor and outdoor electric , communication , fire fightingapparatus , iron and steel smelting , petrochemical industry , electron , power system ,railway , building , mine , air and sea port , hotel , ship , works , waste water treatmentequipment , environmental equipment and so on

Flush Type Plastic Waterproof Distribution Box for Mcb Mini Circuit Breaker Installation

1 , Inside : There are din rail inside for din-rail type circuit breakers , earthbar and natural bar for cable connecton .

2 , Outside : The products can be directly fied on the wall or other flatboards with screws or nails via the screw holes in the base .

Outlet hole : The plastic plate in the hole can be knocked off for cables
