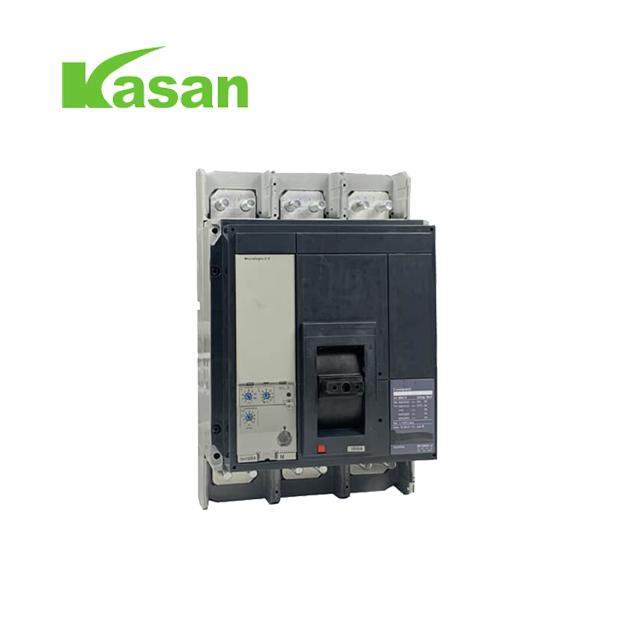

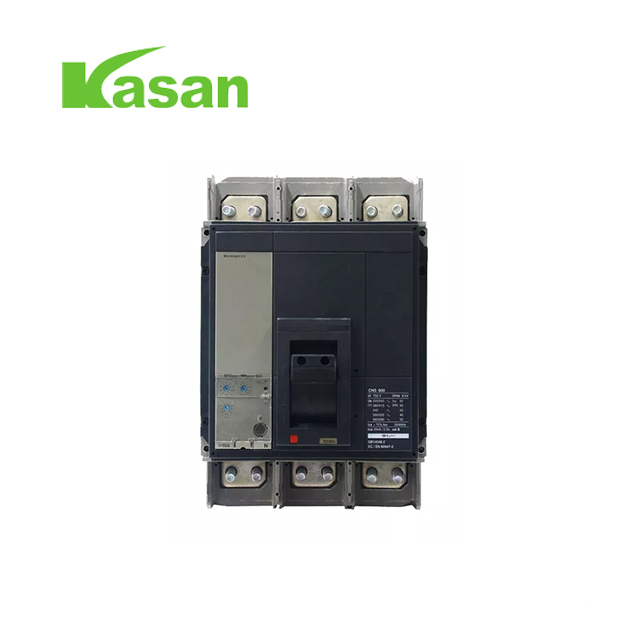

NS 1600A Molded Case Circuit Breakers

ComPact NS is a range of molded case circuit breakers (MCCB) with embedded MicroLogic control units for built-in power & energy metering. The solution covers ratings from 630 to 1600 A.

Up to 1600A ComPactNS 1600A Molded Case Circuit Breakers (MCCB) are equipped with MicroLogic control units that offer built-in power and energy metering in addition to electrical measurement and analysis functions. The solution can be used to ensure a source changeover switch function (TransferPact). It also can evolve with your installation with interchangeable trip units that combine protection and measurement, as well as standardized accessories.

ComPact NS Molded Case Circuit Breakers Specifications

Flexible installation: any position, switchboard or wall-mounted

Nominal current: 630 to 3200 A

Breaking capacities for the 2 sizes of circuit breakers: – up to 1600 A: 50, 70, 150, 200 kA at 415 V – up to 3200 A: 70 & 85 kA at 415 V

3 and 4 pole versions available

Manual and remote operation

Fixed and withdrawable versions

Switch disconnector version available

Embedded earth leakage protection (ELCB)

Optimized range of auxiliaries and accessories; field-installable

ComPact NS Molded Case Circuit Breakers Benefits

Optimize safety

• Highly resistant to environmental stresses
• Ensures motor protection (coordination Type 1 & 2)

Gain flexibility

• Usable in any position
• Possible to use as an income (category B for some breaking capacities)
• Easy to swap trip units and standardized accessories over time

Increase energy efficiency

• Lowered energy consumption
• Linked to Smart Panels; improves uptime with a complete monitoring solution

ComPact NS Molded Case Circuit Breakers Applications

Suitable in most low voltage (LV) applications, including:

• Buildings: commercial buildings, hotels, hospitals, offices
• Data centers, wind turbines, solar, GenSets
• Industry: Mining and minerals, automotive, food and beverage, and chemical industry
• Energy and infrastructures: airports, oil and gas, water treatment, and marine

Ensures compliance with international standards

• IEC 60947-1 and 2
• CCC
• EAC
• Other local certifications and Marine classifications
